Heavy Duty Dual Swing Gate Opener / Operator with Automatic Gate.

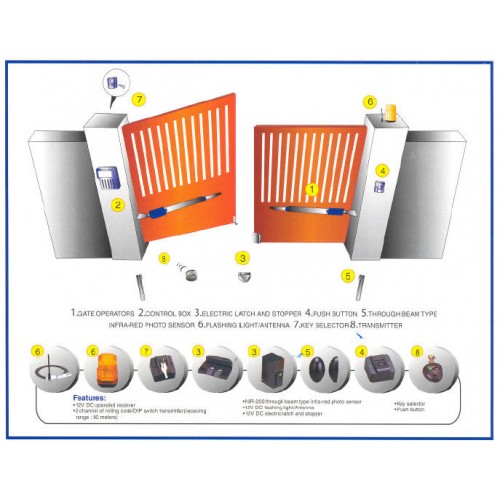

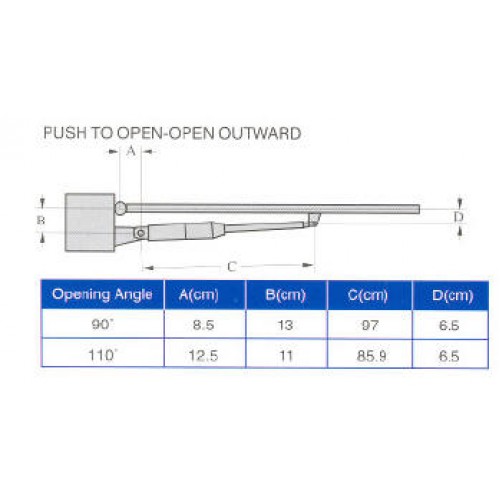

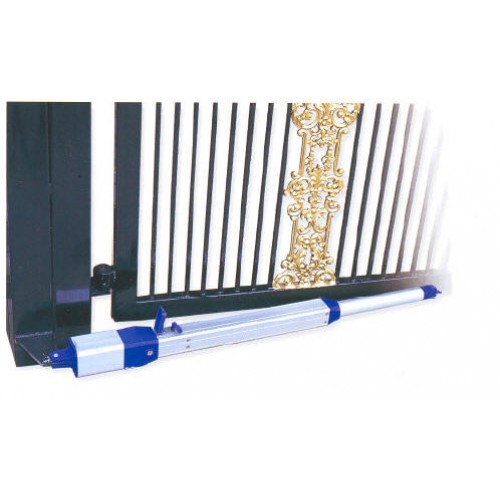

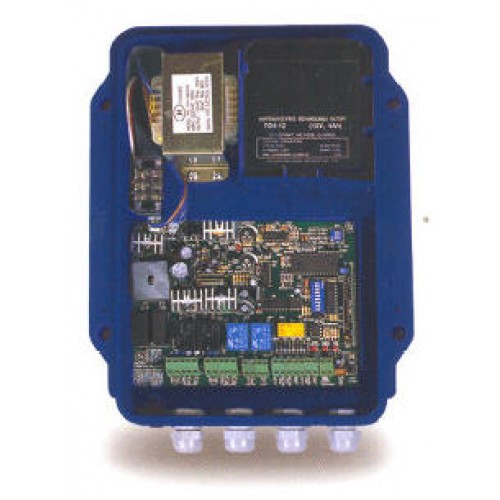

Easy installation, full fitting accessories and complete motor kits. Operators can be post mounted inside gate and direction can be both inward or outward. Fully customizable control panel with interface for photocells, loop detector, IC card reader & alarm lamp, and keypad.


Use the Gatekeeper YG-5602 at home, ranch, or farm to open anything from a single swing tube gate to a pasture or the double swing iron gates of your home. Use the enclosed remote controls and never get out of your car (or off your horse) again.

The Gatekeeper YG-5602 opens a double gate up to 24 feet wide weighing up to 1320b (12ft and 660b per leaf). Works with wood gates, pole fencing, wrought iron gates, or chain-link fences. The Gatekeeper YG-5602 is customizable to your needs. All configurations and options are well documented in newly rewritten procedures (Dec. 2014) and explained in YouTube videos. Or call the US-based support desk 24/7.

The Gatekeeper YG meets all Underwriters Laboratories (UL)-325 Safety Standards to reduce the risk of gate-related accidents. It meets the UL Fourth Edition standard requiring any automatically opening gate to stop, and reverse, when it encounters an obstruction.

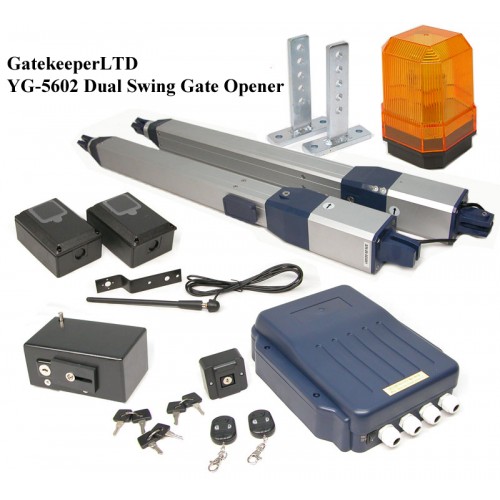

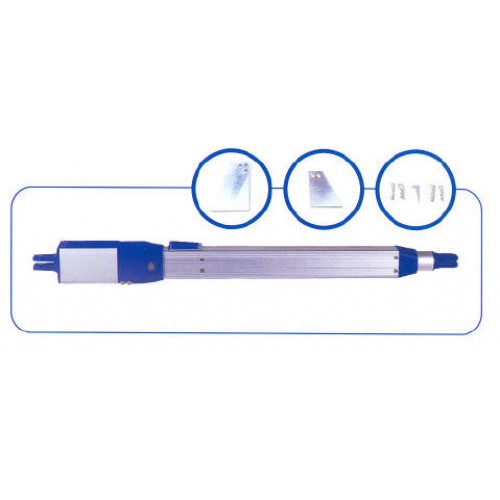

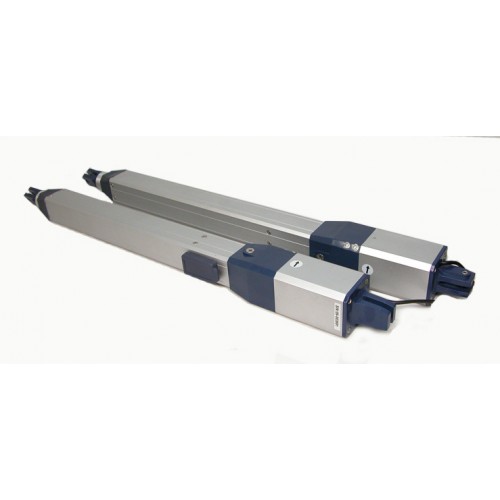

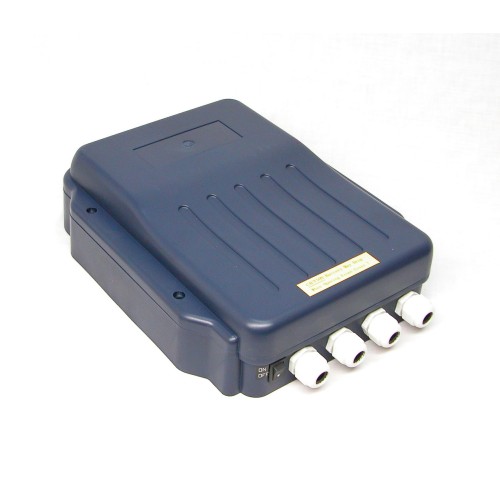

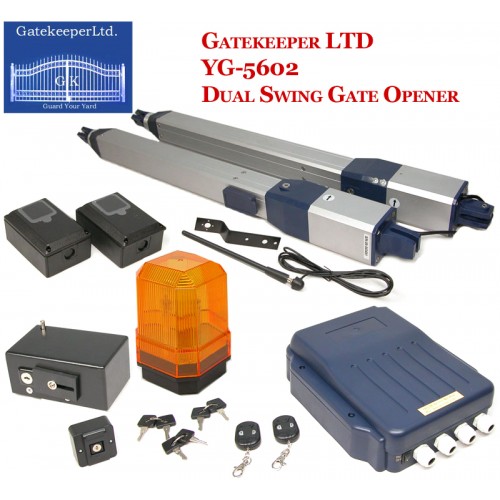

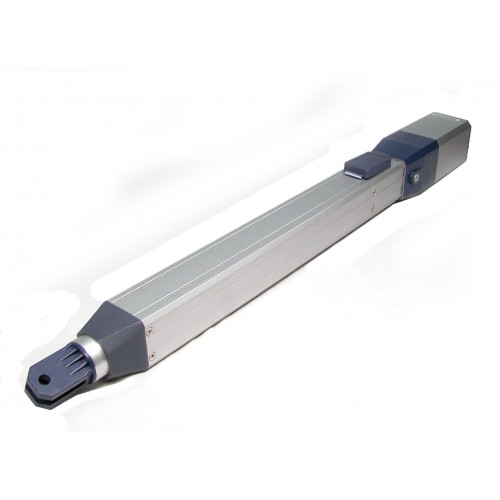

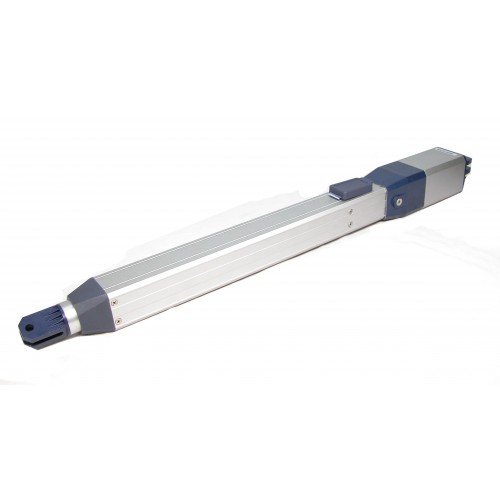

Your Gatekeeper YG-5602 arrives with: Two actuator/operating arms, Weatherproof control box, All mounting/installation hardware, Complete installation instructions (completely rewritten in 2014), Site preparation information and checklist, Electronic lock and keys.

Add an OSM-1 to control your gate from your smart phone Here

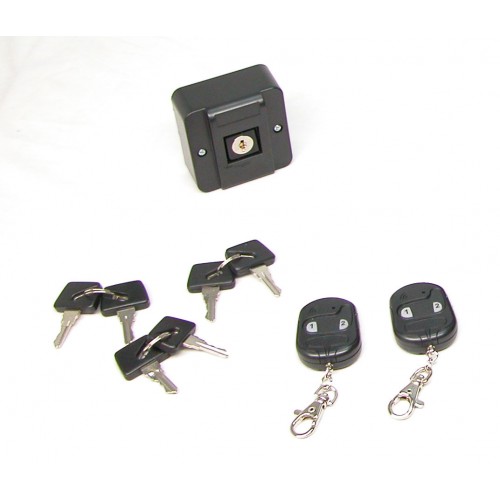

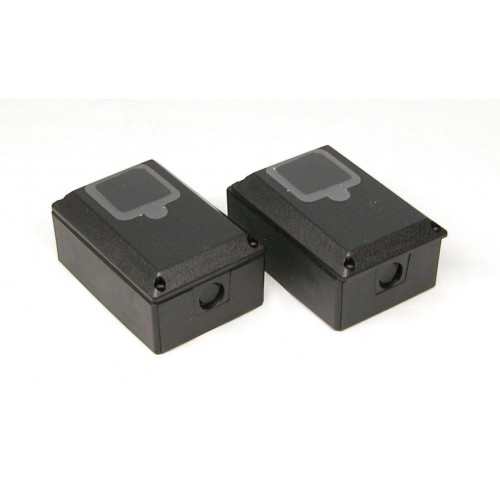

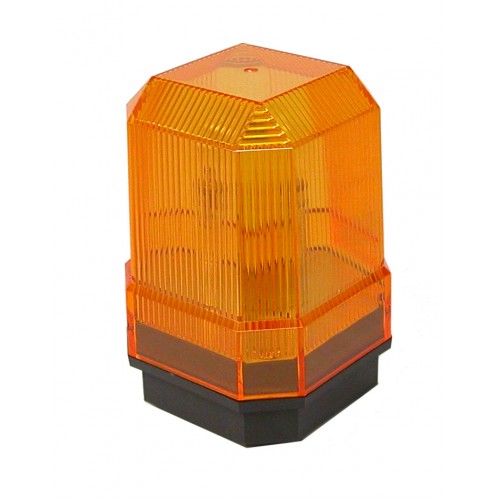

This kit includes many extras not found in other products such as active IR photocell ($70 value), key switch, button switch, light kit, actuator cabling, 2 remote controls and electronic Lock.



Features:
- Water-proof design
- Extremely quiet operation
- Die-cast aluminum and quality painted body.
- Supports gate leafs up to 660lbs or 12 feet (3.6m)
- Battery Backup for power outages
- Supports up to 100 Remotes, 2 included
- Auto-Close Feature

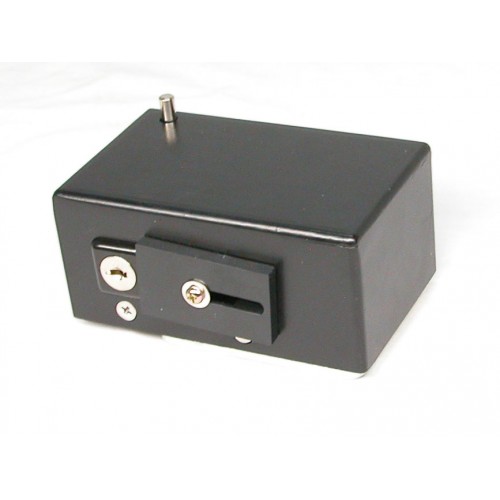

- Solid Steel Lock included
- Self-Learning Opening / Closing Limit Capability
- Self-locking and reversible gear motor
- Adjustable output thrust

Safety First: Check our competition, many do not meet some or all of the UL-325 Safety standards. The CPSC reports that from 1990-1998 an estimated 6,800 injuries (or 755 injuries per year) were related to automatic gates. Among those incidents, there were 28 automatic gate-related deaths during the same time period, involving victims from 17 months to 60 years old.

UL325 Fourth Edition requires that automatic gate openers not only stop when they encounter an obstruction, but also reverse to prevent compression or strangulation injuries. Make sure the gate opener you purchase includes both of these safety features....Gatekeeper does.

Safety Features:
- Time-Delay protection
- Infrared Safety Beam Interface
- Manual Key Release for Emergencies
- RF Rolling Code, prevents thieves
- Overheat and over-current protection
- Adjustable auto-close child safety obstruction sensitivity
- Built-in micro-switches for gate opening arrest

Technical Specs
Power Supply: AC 110VMax. power 735W
Electronic Lock: DC 12V 2AOperating Time: 12 seconds ~ 100 seconds
Relay Coil Voltage: DC 12VSCM power supply: DC 5V
Weight of Control Box: 4.4. lbs. (2Kg)

  • Model: YG-5602
  • Shipping Weight: 57lbs
  • Manufactured by: Gatekeeper Ltd
